SOCKET FUSION TOOL KIT (TK-100)



WHY BUY PIPEFUSER™?

You are a geothermal contractor, perhaps a loop installer and would like to equip your crew with the best tools available.  So look no further because when it comes to socket fusion we offer one of the most advanced tools available on the market today.

FEATURES

PIPEFUSER™ has an ergonomic plastic handle and a unique fold-out stand for stability
PIPEFUSER™ comes with double heating elements for faster heating time, up to 570 F
Heater adapters are manufactured in accordance with ASTM
F 1056 and are coated with stick-resistant material
Two pairs of heater adapters can be connected at a time if needed
The ratchet cutter makes it a snap to reduce pipe length to size
PIPEFUSER™ is a superior tool at an extraordinary price
PIPEFUSER™ comes with a Limited two-year warranty

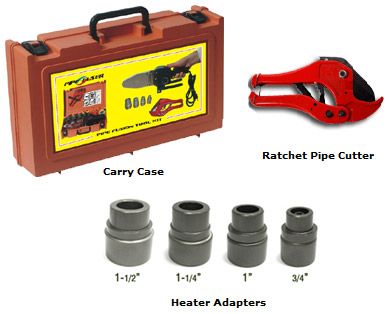

WHAT IS INCLUDED?

Heater Tool, dual wattage (1600W and 800W), 120 VAC
Four pairs of bolt-on Heater Adapters,
¾'', 1'', 1-1/4'' and 1-1/2'' (IPS)
Ratchet Pipe Cutter
Tape Measure
Hex Key
Sturdy Carry Case


$299
[ Back to Top ]


SOCKET FUSION TOOL KIT (TK-200)



WHY BUY PIPEFUSER™?

You are a geothermal contractor, perhaps a loop installer and would like to equip your crew with the best tools available.  So look no further because when it comes to socket fusion we offer one of the most advanced tools available on the market today.

FEATURES

PIPEFUSER™ has an ergonomic plastic handle and a unique slide-in stand for stability

PIPEFUSER™ comes with a 1350 Watt, 120 VAC heating element, for temperatures of up to 570 F
Heater adapters are manufactured in accordance with ASTM
F 1056 and are coated with stick-resistant material
Three pairs of heater adapters can be connected at a time if needed
The ratchet cutter makes it a snap to reduce pipe length to size
PIPEFUSER™ is a superior tool at an extraordinary price
PIPEFUSER™ comes with a Limited two-year warranty

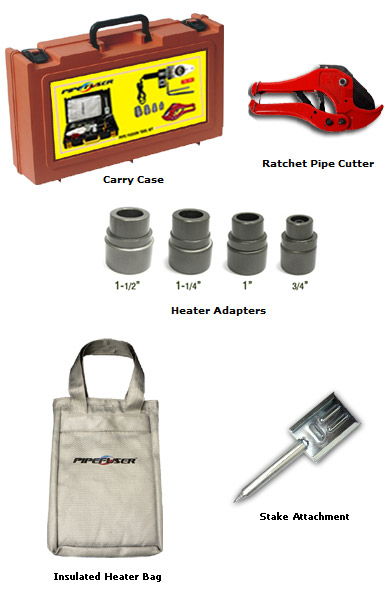

WHAT IS INCLUDED?

Heater Tool, 1350W, 120 VAC
Four pairs of bolt-on Heater Adapters,
¾'', 1'', 1-1/4'' and 1-1/2'' (IPS)
Ratchet Pipe Cutter
Tape Measure
Hex Key
Sturdy Carry Case
Insulated Heater Bag
Stake Attachment


$399
[ Back to Top ]


SOCKET FUSION HEATER ADAPTER SET NON-STICK

FEATURES

Brand new socket/spigot pair for IPS pipe and fitting socket fusion.
Teflon coated for excellent anti-stick feature.
Thick walls for sturdy performance.
Supplied with screw that threads on, for convenient mounting to heater face.


Available Sizes:

 3/4'' $49
 1'' $53
 1 - 1/4'' $59
 1 - 1/2'' $69
 2'' $84
[ Back to Top ]

COLD RINGS

FEATURES
Ensures pipe roundness when used as a pipe holding device, positioned on the pipe for appropriate insertion length

Solid construction with a vanadium locking-plier configuration and 1022 carbon steel ring
Grip width : 1"

Available Sizes:

 3/4'' $79
 1'' $84
 1 - 1/4'' $89
 1 - 1/2'' $94
 2'' $124
[ Back to Top ]

DEPTH GAUGE / CHAMFER TOOLS

FEATURES
Dual-function tool for chamfering pipe edge as well as determining pipe insertion depth according to ASTM F1056

Body made of dimensionally stable polyacetal with long- lasting steel cutter


Available Sizes:

 3/4'' $31
 1" $32
 1 - 1/4'' $34
 1 - 1/2'' $35
 2'' $49
[ Back to Top ]

INSULATED HEATER BAG
FOR SOCKET WELDING TOOL
FEATURES
Woven from glass fiber reinforced Nylon material that can withstand flame-free temperatures of up to 750 F.
Glass wool inner layer for flexibility

Also useful to keep contaminants off heater adapters

Designed to hold various equipment sizes

Dimensions: 12" x 8"



$59.95
[ Back to Top ]

STAKE ATTACHMENT FOR PIPEFUSER
SOCKET WELDING TOOL


(For TK-100 only)
FEATURES

An essential accessory for trench work that you cannot find anywhere else.

Easy to attach solid design made out of Nylon engineering plastic.

Total Length: 5-1/4" ( 3-3/4" + 1-1/2")



$19.95
[ Back to Top ]

RATCHET ACTION HOSE & PVC HDPE
PIPE CUTTER
FEATURES
Heavy Duty Ratchet Cutter for all Plastic or Rubber tubing and pipe
You can exert a much greater force with the ratcheting action while applying less pressure.
Heat Treated Blades for clean cuts
Locks in closed position for safety
Cutting Capacity: 1-5/8" Diameter
WARNING! NOT SUITABLE FOR CUTTING METAL !



$4.99
[ Back to Top ]
